LC1D096SLS207 | Schneider Electric

Power contactor, 3 pole, 9 A, 400 V, 3 Form A (N/O), coil 72 VDC, ring cable lug terminals, LC1D096SLS207

Order No.: 03P1102
EAN: 4099889373738
MPN:
LC1D096SLS207
Series: TeSys LC1D
LC1D096SLS207 Schneider Electric Contactors

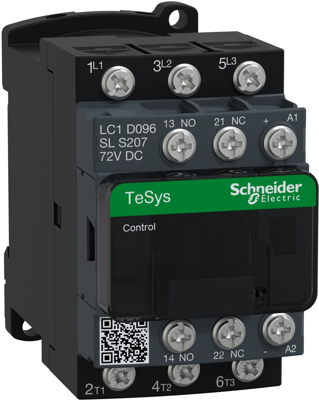

Image may differ
Unit Price (€ / pc.)
72.9113 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
72.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
72.9113 €

Power contactor, LC1D096SLS207, Schneider Electric

TeSys D contactor, 3 poles (3NO), for motor control in railway applications up to 9A/690V AC-3 (4kW@400V). It provides a low consumption 72V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC, EAC) and compliant with the railway European standard EN 45545 R22HL3, Green Premium product (RoHS/REACh).

Technical specifications
Filter Property Value
Degree of protection (IP) IP20
rated voltage (AC) 440 V
Pin number 3 pole
Connection ring cable lug terminals
Latching switching function 3 Form A (N/O)
Assembly DIN rail/screw
Rated Voltage 400 V
Rated current 9 A
Control Voltage 72 VDC
Version power contactor
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free No
