LADN403G | Schneider Electric

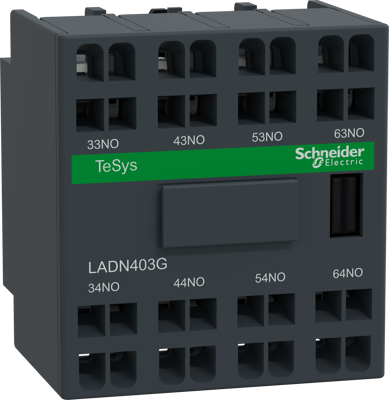

Name: Auxiliary switch block, 4 pole, 10 A, 4 Form A (N/O), spring balancer connection, LADN403G
Brand: Schneider Electric
SKU: 03P1015
Availability: InStock

Auxiliary switch block, 4 pole, 10 A, 4 Form A (N/O), spring balancer connection, LADN403G

Order No.: 03P1015

EAN: 3389110821321

MPN:

LADN403G

Series: TeSys D

Image may differ

Key Specification:

Version auxiliary switch block

Latching switching function 4 Form A (N/O)

Pin number 4 pole

Rated current 10 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

19.0043 € *

Standard delivery time from the manufacturer is: 7 Weeks

Total Price:

19.00 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Auxiliary switch block, LADN403G, Schneider Electric

TeSys D instantaneous auxiliary contact block, for 4-pole contactors LC1D, LC1DT (= 80A AC-1). It provides 4NO contacts rated up to 10A 690V AC, connection by spring terminals, with terminal referencing conforming to EN 50012. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Technical specifications

Filter	Property	Value
	Rated current	10 A
	Assembly	front mounting
	Latching switching function	4 Form A (N/O)
	Connection	spring balancer connection
	Degree of protection (IP)	IP20
	Pin number	4 pole
	Version	auxiliary switch block
	rated voltage (AC)	690 V
