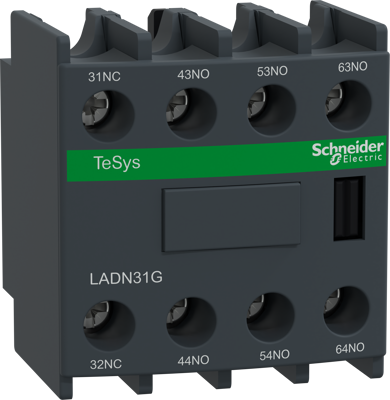

Name: Auxiliary switch block, 4 pole, 10 A, 3 Form A (N/O) + 1 Form B (N/C), screw connection, LADN31G
Brand: Schneider Electric
SKU: 03P1009
Availability: InStock

Auxiliary switch block, 4 pole, 10 A, 3 Form A (N/O) + 1 Form B (N/C), screw connection, LADN31G

Order No.: 03P1009

EAN: 3389110384208

MPN:

LADN31G

Series: TeSys D

Image may differ

Key Specification:

Version auxiliary switch block

Latching switching function 3 Form A (N/O) + 1 Form B (N/C)

Pin number 4 pole

Rated current 10 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

16.4696 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

16.47 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Auxiliary switch block, LADN31G, Schneider Electric

TeSys D instantaneous auxiliary contact block, for 4-pole contactors LC1D, LC1DT (= 80A AC-1). It provides 3NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals, with terminal referencing conforming to EN 50012. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Technical specifications

Filter	Property	Value
	Latching switching function	3 Form A (N/O) + 1 Form B (N/C)
	Pin number	4 pole
	Degree of protection (IP)	IP20
	Rated current	10 A
	Version	auxiliary switch block
	Connection	screw connection
	Assembly	front mounting
	rated voltage (AC)	690 V
