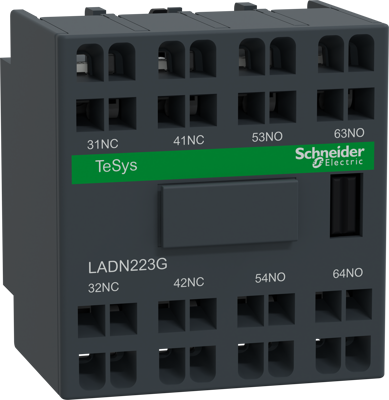

LADN223G | Schneider Electric

Name: Auxiliary switch block, 4 pole, 10 A, 2 Form A (N/O) + 2 Form B (N/C), spring balancer connection, LADN223G
Brand: Schneider Electric
SKU: 03P0996
Availability: InStock

Auxiliary switch block, 4 pole, 10 A, 2 Form A (N/O) + 2 Form B (N/C), spring balancer connection, LADN223G

Order No.: 03P0996

EAN: 3389110821246

MPN:

LADN223G

Series: TeSys D

Image may differ

Key Specification:

Version auxiliary switch block

Latching switching function 2 Form A (N/O) + 2 Form B (N/C)

Pin number 4 pole

Rated current 10 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

17.7786 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

17.78 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Auxiliary switch block, LADN223G, Schneider Electric

TeSys D instantaneous auxiliary contact block, for 4-pole contactors LC1D, LC1DT (= 80A AC-1). It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by spring terminals, with terminal referencing conforming to EN 50012. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Technical specifications

Filter	Property	Value
	Version	auxiliary switch block
	Latching switching function	2 Form A (N/O) + 2 Form B (N/C)
	Pin number	4 pole
	Rated current	10 A
	rated voltage (AC)	690 V
	Connection	spring balancer connection
	Assembly	front mounting
	Degree of protection (IP)	IP20
