LADN20 | Schneider Electric
Auxiliary switch block, 2 pole, 10 A, 2 Form A (N/O), screw connection, LADN20
Unit Price (€ / pc.)
8.7822 € *
Standard delivery time from the manufacturer is: 1 Week

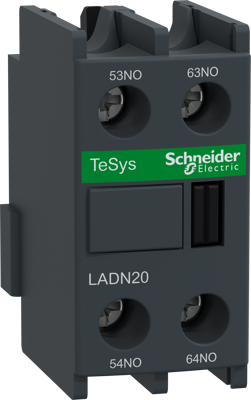

Auxiliary switch block, LADN20, Schneider Electric
TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 2 Form A (N/O) | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP20 | |
| Rated current | 10 A | |
| Version | auxiliary switch block | |
| Connection | screw connection | |
| Assembly | front mounting | |
| rated voltage (AC) | 690 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
