LAD8N206 | Schneider Electric

Auxiliary switch block, 2 pole, 10 A, 2 Form A (N/O), ring cable lug terminals, LAD8N206

Order No.: 03P0904
EAN: 3389110821383
MPN:
LAD8N206
Series: TeSys D
LAD8N206 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
12.8877 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
12.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.8877 €

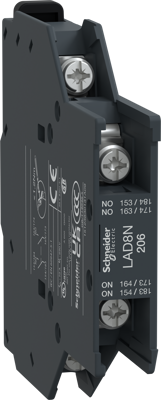

Auxiliary switch block, LAD8N206, Schneider Electric

TeSys D instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 2NO contacts rated up to 10A 690V AC, connection by ring lugs screw terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Connection ring cable lug terminals
Version auxiliary switch block
Degree of protection (IP) IP20
Pin number 2 pole
rated voltage (AC) 690 V
Assembly side mounting
Latching switching function 2 Form A (N/O)
Rated current 10 A
Logistics
Property Value
Customs tariff number 85369095
Country of origin ID
Compliance
Property Value
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
