LAD8N20 | Schneider Electric

Auxiliary switch block, 2 pole, 10 A, 2 Form A (N/O), screw connection, LAD8N20

Order No.: 03P0903
EAN: 3389110384710
MPN:
LAD8N20
Series: TeSys D
LAD8N20 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
12.5307 € *
Available in 3 Days: 151 pcs. - if ordered today
Total Price:
12.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.5307 €

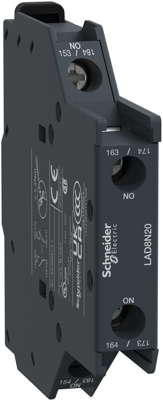

Auxiliary switch block, LAD8N20, Schneider Electric

TeSys D instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 2NO contacts rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Connection screw connection
Latching switching function 2 Form A (N/O)
Pin number 2 pole
rated voltage (AC) 690 V
Degree of protection (IP) IP20
Assembly side mounting
Version auxiliary switch block
Rated current 10 A
Logistics
Property Value
Country of origin ID
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
