LAD8N02 | Schneider Electric

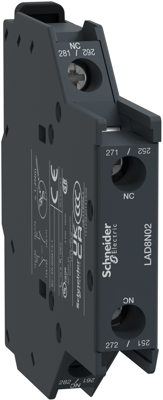

Auxiliary switch block, 2 pole, 10 A, 2 Form B (N/C), screw connection, LAD8N02

Order No.: 03P0898
EAN: 3389110384499
MPN:
LAD8N02
Series: TeSys D
LAD8N02 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
12.5307 € *
Available in 3 Days: 34 pcs. - if ordered today
Total Price:
12.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.5307 €

Auxiliary switch block, LAD8N02, Schneider Electric

TeSys D instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Connection screw connection
Version auxiliary switch block
Degree of protection (IP) IP20
Pin number 2 pole
rated voltage (AC) 690 V
Assembly front mounting
Latching switching function 2 Form B (N/C)
Rated current 10 A
Logistics
Property Value
Customs tariff number 85369095
Country of origin ID
Compliance
Property Value
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
