LA1KN403 | Schneider Electric

Auxiliary switch block, 4 pole, 10 A, 690 V, 4 Form A (N/O), spring-clamp connection, LA1KN403

Order No.: 03P0553
EAN: 3389110243895
MPN:
LA1KN403
Series: TeSys K
LA1KN403 Schneider Electric Contactors

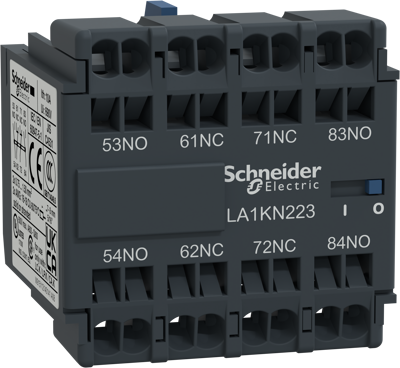

Image may differ
Unit Price (€ / pc.)
23.4192 € *
Available in 3 Days: 25 pcs. - if ordered today
Total Price:
23.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.4192 €

Auxiliary switch block, LA1KN403, Schneider Electric

TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K, CA.K with screw clamp terminals (except LP4K, LP5K, CA4K). It provides 4NO contacts rated up to 10A 690V AC, connection by spring terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Connection spring-clamp connection
Version auxiliary switch block
Degree of protection (IP) IP20
Pin number 4 pole
Assembly front mounting
Latching switching function 4 Form A (N/O)
Rated current 10 A
Rated Voltage 690 V
Logistics
Property Value
Customs tariff number 85365080
Country of origin FR
Compliance
Property Value
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
