LA1KN313 | Schneider Electric

Auxiliary switch block, 4 pole, 10 A, 690 V, 3 Form A (N/O) + 1 Form B (N/C), spring-clamp connection, LA1KN313

Order No.: 03P0549
EAN: 3389110243871
MPN:
LA1KN313
Series: TeSys K
LA1KN313 Schneider Electric Contactors

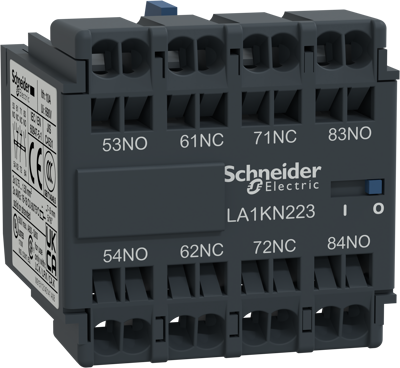

Image may differ
Unit Price (€ / pc.)
23.4192 € *
Available in 3 Days: 46 pcs. - if ordered today
Total Price:
23.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.4192 €

Auxiliary switch block, LA1KN313, Schneider Electric

TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K, CA.K with screw clamp terminals (except LP4K, LP5K, CA4K). It provides 3NO+1NC contacts rated up to 10A 690V AC, connection by spring terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Connection spring-clamp connection
Version auxiliary switch block
Degree of protection (IP) IP20
Pin number 4 pole
Assembly front mounting
Latching switching function 3 Form A (N/O) + 1 Form B (N/C)
Rated current 10 A
Rated Voltage 690 V
Logistics
Property Value
Customs tariff number 85365080
Country of origin FR
Compliance
Property Value
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
