LA1KN113 | Schneider Electric

Auxiliary switch block, 2 pole, 10 A, 690 V, 1 Form A (N/O) + 1 Form B (N/C), spring-clamp connection, LA1KN113

Order No.: 03P0535
EAN: 3389110244922
MPN:
LA1KN113
Series: TeSys K
LA1KN113 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
21.1701 € *
Available in 3 Days: 28 pcs. - if ordered today
Total Price:
21.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.1701 €

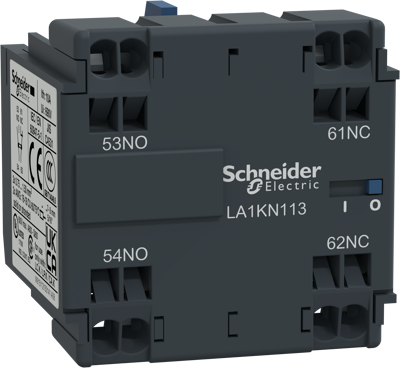

Auxiliary switch block, LA1KN113, Schneider Electric

TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K, CA.K with spring terminals. It provides 1NO+1NC contacts rated up to 10A 690V AC, connection by spring terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Connection spring-clamp connection
Version auxiliary switch block
Degree of protection (IP) IP20
Pin number 2 pole
Assembly front mounting
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Rated current 10 A
Rated Voltage 690 V
Logistics
Property Value
Customs tariff number 85365080
Country of origin FR
Compliance
Property Value
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
