LA1DY20 | Schneider Electric
Auxiliary switch block, 0.1 A, 125 VAC, 2 Form A (N/O), screw connection, LA1DY20
Unit Price (€ / pc.)
78.6828 € *
Standard delivery time from the manufacturer is: 1 Week

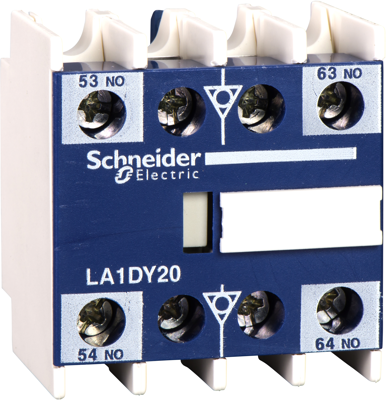

Auxiliary switch block, LA1DY20, Schneider Electric
TeSys D instantaneous auxiliary contact block with dust and damp protected contacts, for LC1D contactors and CAD control relays in harsh industral environments. It provides 2NO protected contacts rated up to 0.1A 125V AC / 30V DC, 4 earth terminals for cable screen continuity, connection by screw clamp terminals. Very low minimum switching capacity (5V / 1mA) thanks to gold alloy contact material. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Degree of protection (IP) | IP20 | |
| Assembly | front mounting | |
| Rated current | 0.1 A | |
| Version | auxiliary switch block | |
| Connection | screw connection | |
| Rated Voltage | 125 VAC | |
| Latching switching function | 2 Form A (N/O) |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
