GC2511M5 | Schneider Electric

Installation contactor, 2 pole, 25 A, 250 VAC, 1 Form A (N/O) + 1 Form B (N/C), coil 240 VAC, screw connection, GC2511M5

Order No.: 02P6419
EAN: 3389110720723
MPN:
GC2511M5
GC2511M5 Schneider Electric Contactors

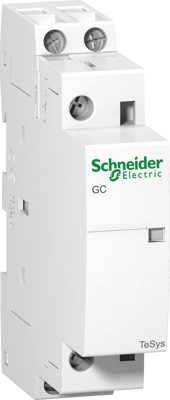

Image may differ
Unit Price (€ / pc.)
55.3469 € *
Available in 3 Days: 11 pcs. - if ordered today
Total Price:
55.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
55.3469 €

Installation contactor, GC2511M5, Schneider Electric

TeSys GC modular contactor, 2 poles (1NO+1NC), 25A/250V AC-7a (heating) and 8.5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Rated Voltage 250 VAC
Rated current 25 A
Pin number 2 pole
Degree of protection (IP) IP20/IP40
Connection screw connection
Control Voltage 240 VAC
Version installation contactor
Assembly DIN rail
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Sustainable Yes
