GC1620M6 | Schneider Electric
Installation contactor, 2 pole, 16 A, 250 VAC, 2 Form A (N/O), coil 240 VAC, screw connection, GC1620M6
Unit Price (€ / pc.)
41.6976 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
41.70 € *
Price list
Quantity
Price per unit*
1 pcs.
41.6976 €
2 pcs.
40.0197 €
4 pcs.
38.4846 €
*incl. VAT plus shipping costs
Subject to prior sale

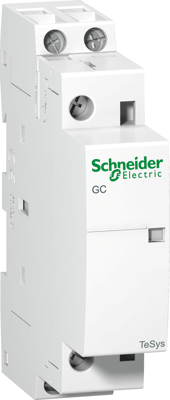

Installation contactor, GC1620M6, Schneider Electric
TeSys GC modular contactor, 2 poles (2NO), 16A/250V AC-7a (heating) and 5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 60Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).
Technical specifications
| Degree of protection (IP) | IP20/IP40 | |
| Assembly | DIN rail | |
| Rated current | 16 A | |
| Control Voltage | 240 VAC | |
| Pin number | 2 pole | |
| Version | installation contactor | |
| Connection | screw connection | |
| Rated Voltage | 250 VAC | |
| Latching switching function | 2 Form A (N/O) |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
