GC1620B5 | Schneider Electric
Installation contactor, 2 pole, 16 A, 250 VAC, 2 Form A (N/O), coil 24 VAC, screw connection, GC1620B5
Unit Price (€ / pc.)
41.6976 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
41.70 € *
Price list
Quantity
Price per unit*
1 pcs.
41.6976 €
2 pcs.
40.0197 €
4 pcs.
38.4846 €
*incl. VAT plus shipping costs
Subject to prior sale

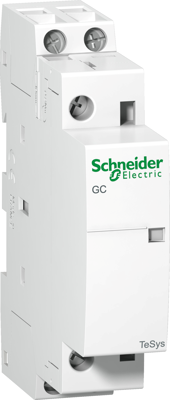

Installation contactor, GC1620B5, Schneider Electric
TeSys GC modular contactor, 2 poles (2NO), 16A/250V AC-7a (heating) and 5A/250V AC-7b (motor control), for household applications. Control voltage 24V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 16 A | |
| Assembly | DIN rail | |
| Latching switching function | 2 Form A (N/O) | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20/IP40 | |
| Control Voltage | 24 VAC | |
| Pin number | 2 pole | |
| Version | installation contactor | |
| Rated Voltage | 250 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
