CAD50FD | Schneider Electric

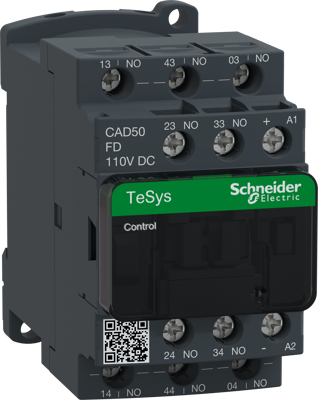

Auxiliary contactor, 5 pole, 10 A, 5 Form A (N/O), coil 110 VDC, screw connection, CAD50FD
Unit Price (€ / pc.)
79.2302 € *
Standard delivery time from the manufacturer is: 1 Week
Control relay, CAD50FD, Schneider Electric
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| Assembly | DIN rail/screw | |
| Latching switching function | 5 Form A (N/O) | |
| Connection | screw connection | |
| Degree of protection (IP) | IP2X | |
| Control Voltage | 110 VDC | |
| Pin number | 5 pole | |
| Version | auxiliary contactor | |
| rated voltage (AC) | 690 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
