CAD50BL | Schneider Electric

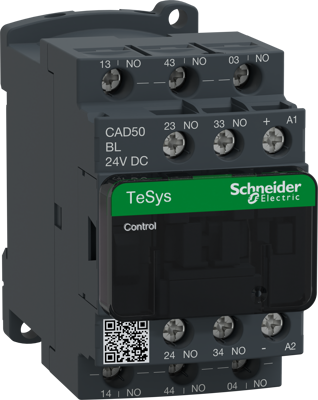

Auxiliary contactor, 5 pole, 10 A, 5 Form A (N/O), coil 24 VDC, screw connection, CAD50BL
Unit Price (€ / pc.)
69.4484 € *
Standard delivery time from the manufacturer is: 1 Week
Control relay, CAD50BL, Schneider Electric
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| Version | auxiliary contactor | |
| Pin number | 5 pole | |
| Connection | screw connection | |
| Latching switching function | 5 Form A (N/O) | |
| Assembly | DIN rail/screw | |
| Control Voltage | 24 VDC | |
| Degree of protection (IP) | IP2X | |
| rated voltage (AC) | 690 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
