CAD506FD | Schneider Electric

Auxiliary contactor, 5 pole, 10 A, 5 Form A (N/O), coil 110 VDC, ring cable lug terminals, CAD506FD

Order No.: 02P4067
EAN: 3389110847307
MPN:
CAD506FD
Series: TeSys SK, K, D
CAD506FD Schneider Electric Contactors

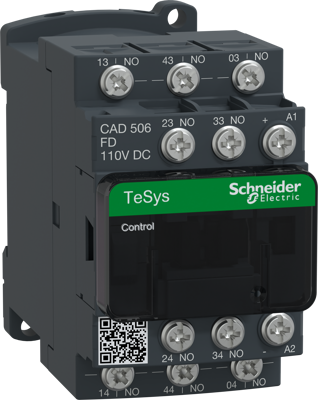

Image may differ
Unit Price (€ / pc.)
81.9910 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
81.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
81.9910 €

Control relay, CAD506FD, Schneider Electric

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Technical specifications
Filter Property Value
Rated current 10 A
Assembly DIN rail/screw
Latching switching function 5 Form A (N/O)
Connection ring cable lug terminals
Degree of protection (IP) IP2X
Control Voltage 110 VDC
Pin number 5 pole
Version auxiliary contactor
rated voltage (AC) 690 V
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Sustainable Yes
