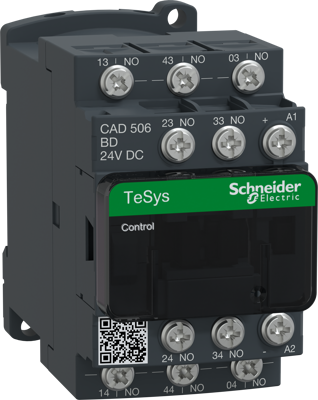

CAD506BD | Schneider Electric
Auxiliary contactor, 5 pole, 10 A, 5 Form A (N/O), coil 24 VDC, ring cable lug terminals, CAD506BD
Unit Price (€ / pc.)
87.5126 € *
Standard delivery time from the manufacturer is: 2 Weeks
Control relay, CAD506BD, Schneider Electric
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 5 Form A (N/O) | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP2X | |
| Connection | ring cable lug terminals | |
| Control Voltage | 24 VDC | |
| Rated current | 10 A | |
| rated voltage (AC) | 690 V | |
| Assembly | DIN rail/screw | |
| Version | auxiliary contactor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
