CAD503P7 | Schneider Electric
Auxiliary contactor, 5 pole, 10 A, 5 Form A (N/O), coil 230 VAC, spring-clamp connection, CAD503P7
Unit Price (€ / pc.)
47.7071 € *
Standard delivery time from the manufacturer is: 1 Week

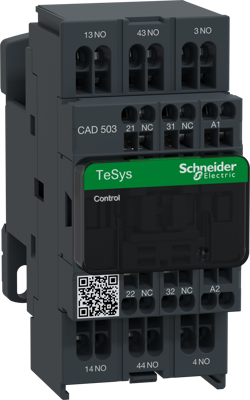

Control relay, CAD503P7, Schneider Electric
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 230V 50/60Hz AC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Control Voltage | 230 VAC | |
| Version | auxiliary contactor | |
| Connection | spring-clamp connection | |
| Degree of protection (IP) | IP2X | |
| Assembly | DIN rail | |
| Latching switching function | 5 Form A (N/O) | |
| Pin number | 5 pole | |
| rated voltage (AC) | 690 V | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
