CAD503BL | Schneider Electric
Auxiliary contactor, 5 pole, 10 A, 5 Form A (N/O), coil 24 VDC, spring-clamp connection, CAD503BL
Unit Price (€ / pc.)
71.5071 € *
Standard delivery time from the manufacturer is: 1 Week

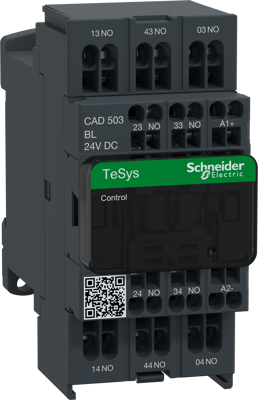

Control relay, CAD503BL, Schneider Electric
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| rated voltage (AC) | 690 V | |
| Degree of protection (IP) | IP2X | |
| Assembly | DIN rail | |
| Rated current | 10 A | |
| Control Voltage | 24 VDC | |
| Pin number | 5 pole | |
| Version | auxiliary contactor | |
| Connection | spring-clamp connection | |
| Latching switching function | 5 Form A (N/O) |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85364190 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
