CAD32MD | Schneider Electric

Auxiliary contactor, 5 pole, 10 A, 3 Form A (N/O) + 2 Form B (N/C), coil 220 VDC, screw connection, CAD32MD

Order No.: 02P4027
EAN: 3389110405118
MPN:
CAD32MD
Series: TeSys SK, K, D
CAD32MD Schneider Electric Contactors

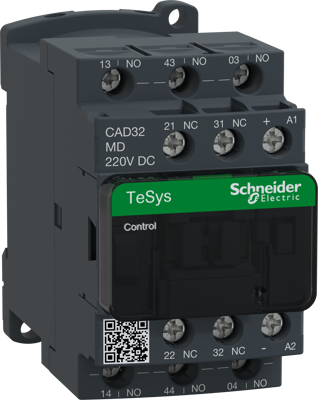

Image may differ
Unit Price (€ / pc.)
79.2302 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
79.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
79.2302 €

Control relay, CAD32MD, Schneider Electric

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Technical specifications
Filter Property Value
Connection screw connection
Version auxiliary contactor
Degree of protection (IP) IP2X
Pin number 5 pole
Control Voltage 220 VDC
rated voltage (AC) 690 V
Assembly DIN rail/screw
Latching switching function 3 Form A (N/O) + 2 Form B (N/C)
Rated current 10 A
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
