CAD32ED | Schneider Electric

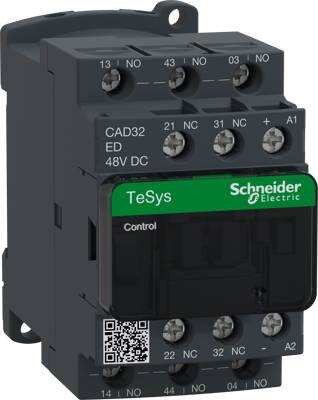

Auxiliary contactor, 5 pole, 10 A, 3 Form A (N/O) + 2 Form B (N/C), coil 48 VDC, screw connection, CAD32ED
Unit Price (€ / pc.)
79.6229 € *
Standard delivery time from the manufacturer is: 1 Week
Control relay, CAD32ED, Schneider Electric
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP2X | |
| Pin number | 5 pole | |
| Version | auxiliary contactor | |
| Assembly | DIN rail/screw | |
| Control Voltage | 48 VDC | |
| Latching switching function | 3 Form A (N/O) + 2 Form B (N/C) | |
| Connection | screw connection | |
| rated voltage (AC) | 690 V | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
