CAD32E7 | Schneider Electric

Auxiliary contactor, 5 pole, 10 A, 3 Form A (N/O) + 2 Form B (N/C), coil 48 VAC, screw connection, CAD32E7

Order No.: 02P4010
EAN: 3389110400281
MPN:
CAD32E7
Series: TeSys SK, K, D

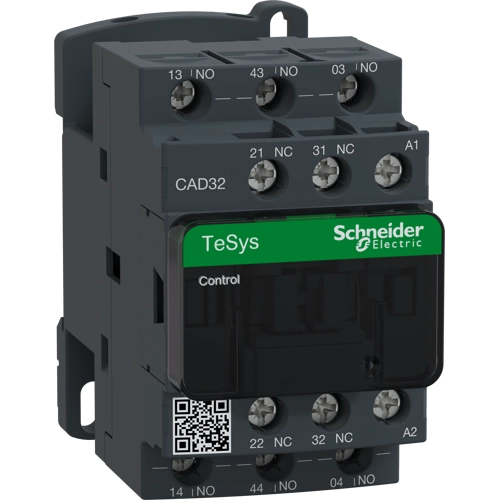

CAD32E7 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
45.8864 € *
Available in 3 Days: 88 pcs. - if ordered today
Total Price:
45.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
45.8864 €

Control relay, CAD32E7, Schneider Electric

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Technical specifications
Filter Property Value
Connection screw connection
Version auxiliary contactor
Degree of protection (IP) IP2X
Pin number 5 pole
Control Voltage 48 VAC
rated voltage (AC) 690 V
Assembly DIN rail/screw
Latching switching function 3 Form A (N/O) + 2 Form B (N/C)
Rated current 10 A
Logistics
Property Value
Customs tariff number 85364190
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
