CAD326P7 | Schneider Electric

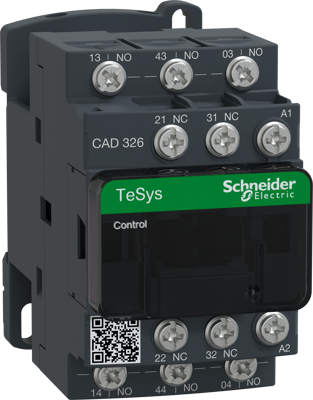

Auxiliary contactor, 5 pole, 10 A, 3 Form A (N/O) + 2 Form B (N/C), coil 230 VAC, ring cable lug terminals, CAD326P7
Unit Price (€ / pc.)
49.8372 € *
Standard delivery time from the manufacturer is: 2 Weeks
Control relay, CAD326P7, Schneider Electric
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 230V 50/60Hz AC control circuit, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | ring cable lug terminals | |
| Version | auxiliary contactor | |
| Degree of protection (IP) | IP2X | |
| Pin number | 5 pole | |
| Control Voltage | 230 VAC | |
| rated voltage (AC) | 690 V | |
| Assembly | DIN rail/screw | |
| Latching switching function | 3 Form A (N/O) + 2 Form B (N/C) | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
