CAD326GD | Schneider Electric
Auxiliary contactor, 5 pole, 10 A, 3 Form A (N/O) + 2 Form B (N/C), coil 125 VDC, ring cable lug terminals, CAD326GD
Unit Price (€ / pc.)
83.9664 € *
Standard delivery time from the manufacturer is: 2 Weeks

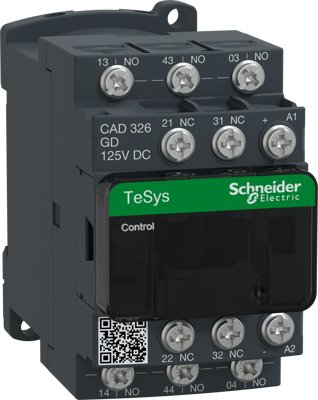

Control relay, CAD326GD, Schneider Electric
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 125V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP2X | |
| Pin number | 5 pole | |
| Version | auxiliary contactor | |
| Assembly | DIN rail/screw | |
| Control Voltage | 125 VDC | |
| Latching switching function | 3 Form A (N/O) + 2 Form B (N/C) | |
| Connection | ring cable lug terminals | |
| rated voltage (AC) | 690 V | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
