CAD323FE7 | Schneider Electric
Auxiliary contactor, 5 pole, 10 A, 3 Form A (N/O) + 2 Form B (N/C), coil 115 VAC, spring-clamp connection, CAD323FE7
Unit Price (€ / pc.)
50.3013 € *
Standard delivery time from the manufacturer is: 1 Week

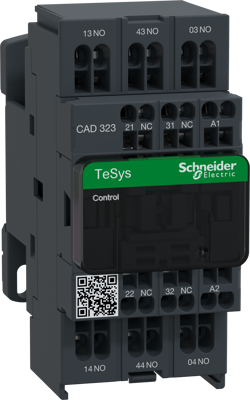

Control relay, CAD323FE7, Schneider Electric
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 115V 50/60Hz AC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 3 Form A (N/O) + 2 Form B (N/C) | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP2X | |
| Connection | spring-clamp connection | |
| Control Voltage | 115 VAC | |
| Rated current | 10 A | |
| rated voltage (AC) | 690 V | |
| Assembly | DIN rail | |
| Version | auxiliary contactor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
