CAD323BL | Schneider Electric

Auxiliary contactor, 5 pole, 10 A, 3 Form A (N/O) + 2 Form B (N/C), coil 24 VDC, spring-clamp connection, CAD323BL

Order No.: 02P3973
EAN: 3389110820669
MPN:
CAD323BL
Series: TeSys SK, K, D
CAD323BL Schneider Electric Contactors

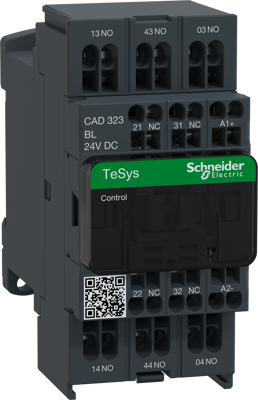

Image may differ
Unit Price (€ / pc.)
71.5071 € *
Available in 3 Days: 301 pcs. - if ordered today
Total Price:
71.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
71.5071 €

Control relay, CAD323BL, Schneider Electric

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Technical specifications
Filter Property Value
Connection spring-clamp connection
Version auxiliary contactor
Degree of protection (IP) IP2X
Pin number 5 pole
Control Voltage 24 VDC
rated voltage (AC) 690 V
Assembly DIN rail
Latching switching function 3 Form A (N/O) + 2 Form B (N/C)
Rated current 10 A
Logistics
Property Value
Customs tariff number 85364190
Country of origin ID
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
