CAD323B7 | Schneider Electric
Auxiliary contactor, 5 pole, 10 A, 3 Form A (N/O) + 2 Form B (N/C), coil 24 VAC, spring-clamp connection, CAD323B7
Unit Price (€ / pc.)
50.3013 € *
Standard delivery time from the manufacturer is: 1 Week

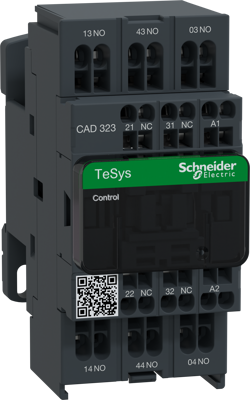

Control relay, CAD323B7, Schneider Electric
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V 50/60Hz AC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Version | auxiliary contactor | |
| Degree of protection (IP) | IP2X | |
| Pin number | 5 pole | |
| Control Voltage | 24 VAC | |
| rated voltage (AC) | 690 V | |
| Assembly | DIN rail | |
| Latching switching function | 3 Form A (N/O) + 2 Form B (N/C) | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | ID |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
