CA4KN22BW3 | Schneider Electric

Auxiliary contactor, 4 pole, 10 A, 2 Form A (N/O) + 2 Form B (N/C), coil 24 VDC, screw connection, CA4KN22BW3

Order No.: 02P3948
EAN: 4099889371970
MPN:
CA4KN22BW3
Series: TeSys SK, K, D
CA4KN22BW3 Schneider Electric Contactors

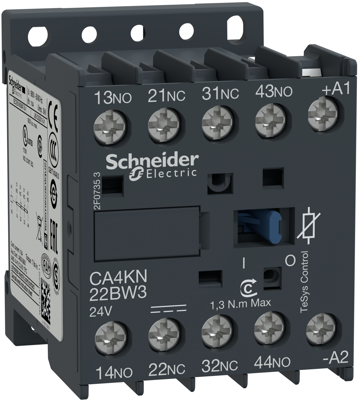

Image may differ
Unit Price (€ / pc.)
49.0399 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
49.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
49.0399 €

Control relay, CA4KN22BW3, Schneider Electric

TeSys K control relay, 4 contacts (2NO+2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Technical specifications
rated voltage (AC) 690 V
Degree of protection (IP) IP2X
Assembly DIN rail/screw
Rated current 10 A
Control Voltage 24 VDC
Pin number 4 pole
Version auxiliary contactor
Connection screw connection
Latching switching function 2 Form A (N/O) + 2 Form B (N/C)
Logistics
Country of origin FR
Customs tariff number 85364190
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
