CA2KN40E7 | Schneider Electric
Auxiliary contactor, 4 pole, 10 A, 4 Form A (N/O), coil 48 VAC, screw connection, CA2KN40E7
Unit Price (€ / pc.)
35.6762 € *
Available in 3 Days: 52 pcs. - if ordered today

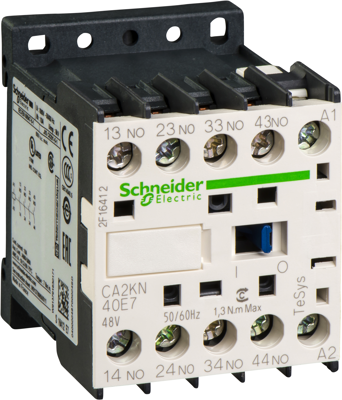

Control relay, CA2KN40E7, Schneider Electric
TeSys K control relay, 4 contacts (4NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| Assembly | DIN rail/screw | |
| Latching switching function | 4 Form A (N/O) | |
| Connection | screw connection | |
| Degree of protection (IP) | IP2X | |
| Control Voltage | 48 VAC | |
| Pin number | 4 pole | |
| Version | auxiliary contactor | |
| rated voltage (AC) | 690 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
