CA2KN31V7 | Schneider Electric
Auxiliary contactor, 4 pole, 10 A, 3 Form A (N/O) + 1 Form B (N/C), coil 400 VAC, screw connection, CA2KN31V7
Unit Price (€ / pc.)
36.6639 € *
Standard delivery time from the manufacturer is: 1 Week

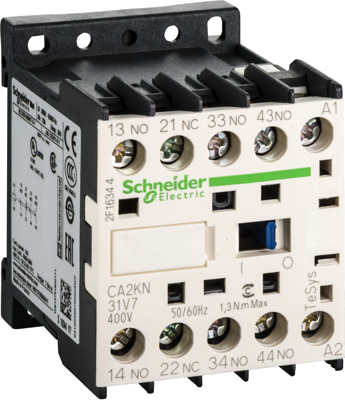

Control relay, CA2KN31V7, Schneider Electric
TeSys K control relay, 4 contacts (3NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 400V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Technical specifications
| rated voltage (AC) | 690 V | |
| Degree of protection (IP) | IP2X | |
| Assembly | DIN rail/screw | |
| Rated current | 10 A | |
| Control Voltage | 400 VAC | |
| Pin number | 4 pole | |
| Version | auxiliary contactor | |
| Connection | screw connection | |
| Latching switching function | 3 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
