A9C20844 | Schneider Electric

Installation contactor, 4 pole, 40 A, 400 V, 4 Form A (N/O), coil 240 VAC, screw connection, A9C20844

Order No.: 01P6841
EAN: 3606480088629
MPN:
A9C20844
Series: Acti 9 iCT
A9C20844 Schneider Electric Contactors

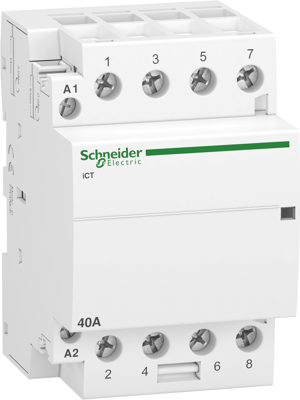

Image may differ
Unit Price (€ / pc.)
112.9191 € *
Available in 3 Days: 175 pcs. - if ordered today
Total Price:
112.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
112.9191 €

Installation contactor, A9C20844, Schneider Electric

This Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contacts. The rated current is 40A for AC-7a and 15A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching small motors (fans, mixers) or HVAC system applications. This product is compliant with IEC/EN 61095 standard. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 6 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 54mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Technical specifications
Filter Property Value
Connection screw connection
Version installation contactor
Degree of protection (IP) IP20
Pin number 4 pole
Control Voltage 240 VAC
Assembly DIN rail
Latching switching function 4 Form A (N/O)
Rated current 40 A
Rated Voltage 400 V
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
