M9F10104 | Schneider Electric

Circuit breaker, 1 pole, B Curve, 4 A, 240 V, DIN rail, M9F10104

Order No.: 03P7776
EAN: 3606480920967
MPN:
M9F10104
Series: Multi 9

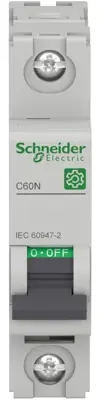

M9F10104 Schneider Electric Circuit Protectors Image 1

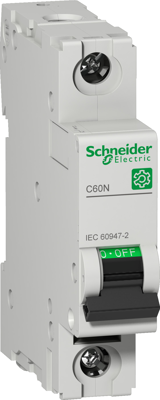

M9F10104 Schneider Electric Circuit Protectors Image 2
Image may differ
Unit Price (€ / pc.)
16.1959 € *
Available in 3 Days: 8 pcs. - if ordered today
Total Price:
16.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
16.1959 €

Circuit breaker, M9F10104, SCHNEIDER

The M9F10104 is a low voltage miniature circuit breaker. It is a 1P circuit breaker with 1 protected pole and 4 A In rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3 kA at 415 V AC. This product protects from short circuit, earth leakage and overload.

Features

  • High breaking capacity
  • High rated impulse withstand voltage
  • High mechanical durability
  • High electrical durability

Applications

  • Semiconductor industry
  • Telecom industries
Technical specifications
Filter Property Value
Rated voltage (AC) 415 V
Rated voltage (DC) 72 V
Degree of protection (IP) IP20
Product type circuit breaker
Pin number 1 pole
Rated Voltage 240 V
Rated current 4 A
Tripping characteristics B
Assembly DIN rail
Logistics
Property Value
Customs tariff number 85362010
Country of origin BG
Compliance
Property Value
Sustainable Yes
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
