A9N15636 | Schneider Electric

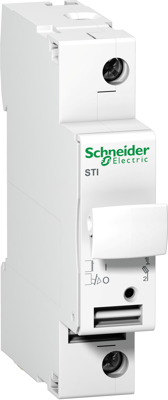

Fuse carrier, 1 pole, 25 A, 500 V, DIN rail, A9N15636
Unit Price (€ / pc.)
9.4367 € *
Standard delivery time from the manufacturer is: 1 Week
Fuse carrier, A9N15636, SCHNEIDER
The A9N15636 is an isolatable fuse-carrier with a low voltage fuse-disconnector. It is used for tertiary and industrial applications requiring a high breaking capacity. It is equipped with 1P pole, and goes up to 25 A rated current. This product provides overload and short-circuit protection.
Features
- Protection of the circuit against short-circuit current
- Circuit protection against overload current
- High breaking capacity
- Trip curve GG
- High rated operating voltage
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 500 V | |
| Pin number | 1 pole | |
| Rated current | 25 A | |
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail | |
| Product type | fuse carrier |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | BE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
