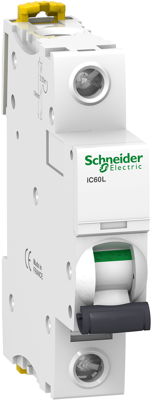

A9F93150 | Schneider Electric

Circuit breaker, 1 pole, B Curve, 50 A, 230 V, DIN rail, A9F93150

Order No.: 01P7729
EAN: 3606480083723
MPN:
A9F93150
Series: Acti 9
A9F93150 Schneider Electric Circuit Protectors
Image may differ
Unit Price (€ / pc.)
54.4663 € *
Available in 3 Days: 1 pcs. - if ordered today
Total Price:
54.47 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
54.4663 €

Circuit breaker, A9F93150, SCHNEIDER

The A9F93150 is a low voltage miniature circuit breaker. It is a 1P circuit breaker with 1 protected pole and 50 A In rated current and B tripping curve. The rated short circuit breaking capacity goes up to 15 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.

Features

  • High breaking capacity
  • High rated impulse withstand voltage
  • High mechanical durability
  • High electrical durability
Technical specifications
Filter Property Value
Product type circuit breaker
Degree of protection (IP) IP20
Pin number 1 pole
Assembly DIN rail
Rated current 50 A
Tripping characteristics B
Rated Voltage 230 V
Logistics
Property Value
Customs tariff number 85362010
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
