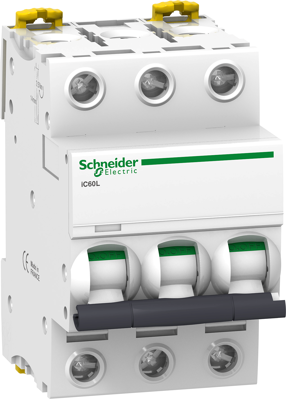

Circuit breaker, 3 pole, Z Curve, 50 A, 400 V, DIN rail, A9F92350

Order No.: 01P7699
EAN: 4099889147476
MPN:
A9F92350
Series: Acti 9
A9F92350 Schneider Electric Circuit Protectors
Image may differ
Unit Price (€ / pc.)
260.2768 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1,041.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
4 pcs.
260.2768 €

Circuit breaker, A9F92350, SCHNEIDER

The A9F92350 is a low voltage miniature circuit breaker. It is a 3P circuit breaker with 3 protected poles and 50 A In rated current and Z tripping curve. The rated short circuit breaking capacity goes up to 36 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.

Features

  • High breaking capacity
  • High rated impulse withstand voltage
  • High mechanical durability
  • High electrical durability
Technical specifications
Degree of protection (IP) IP20
Assembly DIN rail
Tripping characteristics Z
Product type circuit breaker
Pin number 3 pole
Rated Voltage 400 V
Rated current 50 A
Logistics
Country of origin FR
Customs tariff number 85362010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
