A9F07106 | Schneider Electric

Circuit breaker, 1 pole, C Curve, 6 A, 230 V, DIN rail, A9F07106

Order No.: 01P7509
EAN: 3606480438325
MPN:
A9F07106
Series: Acti 9
A9F07106 Schneider Electric Circuit Protectors
Image may differ
Unit Price (€ / pc.)
36.8424 € *
Available: 1 pcs.
Total Price:
36.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.8424 €

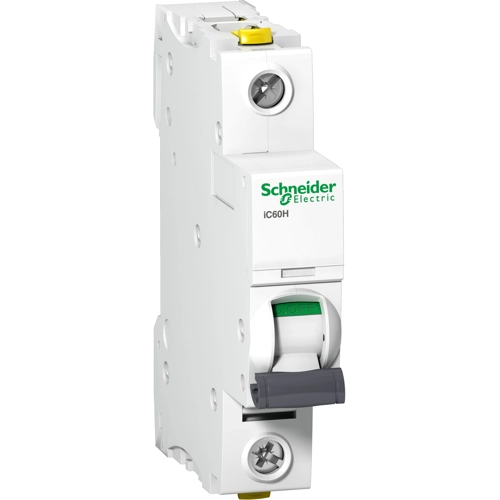

Circuit breaker, A9F07106, SCHNEIDER

The A9F07106 is a multistandard low voltage miniature circuit breaker with double tunnel terminals. It is a 1P circuit breaker with 1 protected pole and 6 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.

Features

  • High breaking capacity
  • High rated impulse withstand voltage
  • High mechanical durability
  • High electrical durability
Technical specifications
Filter Property Value
Rated Voltage 230 V
Pin number 1 pole
Rated current 6 A
Degree of protection (IP) IP20
Assembly DIN rail
Tripping characteristics C
Product type circuit breaker
Logistics
Property Value
Customs tariff number 85362010
Country of origin BG
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
