A9F06110 | Schneider Electric

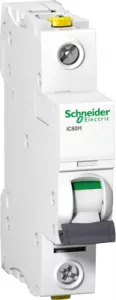

Circuit breaker, 1 pole, B Curve, 10 A, 230 V, DIN rail, A9F06110
Unit Price (€ / pc.)
17.4454 € *
Available: 5 pcs.
Circuit breaker, A9F06110, SCHNEIDER
The A9F06110 is a multistandard low voltage miniature circuit breaker with double tunnel terminals. It is a 1P circuit breaker with 1 protected pole and 10 A In rated current and B tripping curve. The rated short circuit breaking capacity goes up to 15 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 230 V | |
| Pin number | 1 pole | |
| Rated current | 10 A | |
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail | |
| Tripping characteristics | B | |
| Product type | circuit breaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
