VCFN32GE | Schneider Electric
Emergency stop/main switch, rotary actuator, 3 pole, 25 A, (W x H x D) 82.5 x 131 x 106 mm, panel mounting, VCFN32GE
Unit Price (€ / pc.)
49.0518 € *
Standard delivery time from the manufacturer is: 2 Weeks

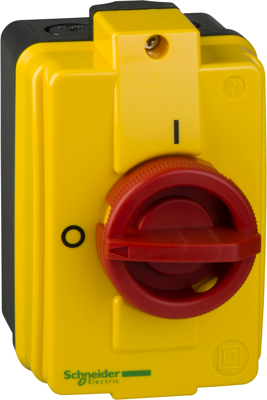

Emergency stop/main switch, VCFN32GE, Schneider Electric
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 25 A 690 V, for main and emergency stop switching in motor applications up to 11kW@400V AC-23. Enclosure providing IP55 protection, yellow cover fitted with a red rotary handle and I/O marking, padlockable (padlocks not included). It includes a 3-pole Vario switch body V1 with no possibility to have add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | emergency stop/main switch | |
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Assembly | panel mounting | |
| Width | 82.5 mm | |
| Height | 131 mm | |
| Depth | 106 mm | |
| Permanent current | 25 A | |
| Degree of protection (IP) | IP55 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85371098 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
