VCF6 | Schneider Electric
Emergency stop/main switch, rotary actuator, 3 pole, 175 A, (W x H) 90 x 125 mm, screw mounting, VCF6
Unit Price (€ / pc.)
232.5617 € *
Available in 3 Days: 28 pcs. - if ordered today

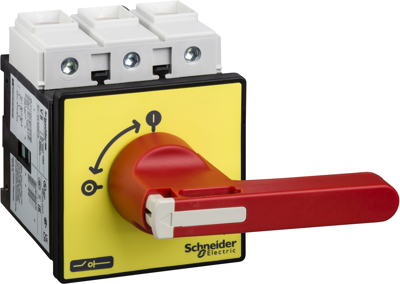

Emergency stop/main switch, VCF6, Schneider Electric
TeSys Vario switch disconnector for door mounting, 3 poles, 175 A/690 V, for motor switching applications up to 45kW@400V AC-23. Complete unit composed of a switch body V6, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | emergency stop/main switch | |
| Height | 125 mm | |
| Permanent current | 175 A | |
| Assembly | screw mounting | |
| Width | 90 mm | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 | |
| Actuator | rotary actuator |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
