VCF4 | Schneider Electric

Emergency stop/main switch, rotary actuator, 3 pole, 80 A, (W x H) 60 x 83 mm, screw mounting, VCF4

Order No.: 04P8330
EAN: 3389110166002
MPN:
VCF4

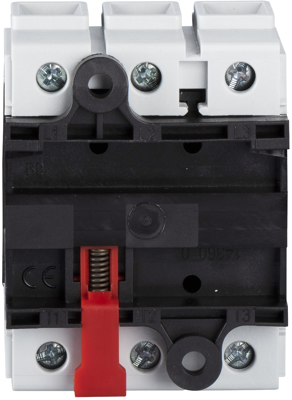

VCF4 Schneider Electric Circuit Breakers Image 1

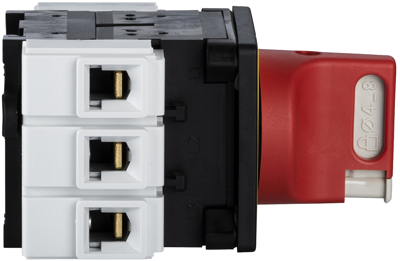

VCF4 Schneider Electric Circuit Breakers Image 2

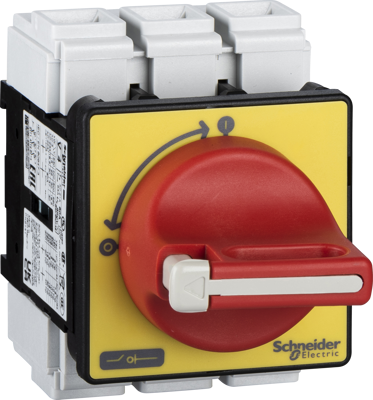

VCF4 Schneider Electric Circuit Breakers Image 3

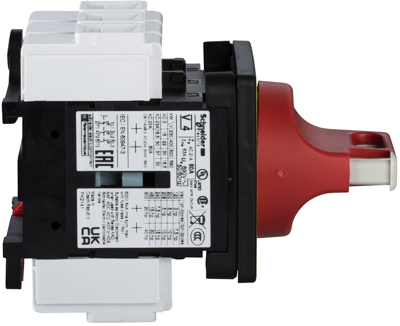

VCF4 Schneider Electric Circuit Breakers Image 4

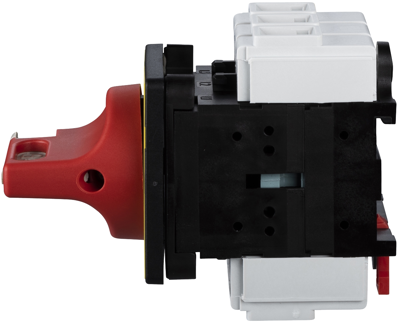

VCF4 Schneider Electric Circuit Breakers Image 5
Image may differ
Unit Price (€ / pc.)
81.1937 € *
Available in 3 Days: 88 pcs. - if ordered today
Total Price:
81.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
81.1937 €

Emergency stop/main switch, VCF4, Schneider Electric

TeSys Vario switch disconnector for door mounting, 3 poles, 80 A/690 V, for motor switching applications up to 30kW@400V AC-23. Complete unit composed of a switch body V4, a red handle with yellow 60x60 mm front plate KCF2PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Width 60 mm
Product type emergency stop/main switch
Degree of protection (IP) IP65
Pin number 3 pole
Height 83 mm
Assembly screw mounting
Actuator rotary actuator
Permanent current 80 A
Logistics
Property Value
Customs tariff number 85362010
Country of origin CZ
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
