VCF0GE | Schneider Electric
Emergency stop/main switch, rotary actuator, 3 pole, 20 A, (W x H x D) 90 x 146 x 131 mm, panel mounting, VCF0GE
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
38.5560 € *
Available: 14 pcs.
Available in 3 Days: 257 pcs. - if ordered today
Total Price:
38.56 € *
Price list
Quantity
Price per unit*
1 pcs.
38.5560 €
5 pcs.
37.5088 €
*incl. VAT plus shipping costs
Subject to prior sale

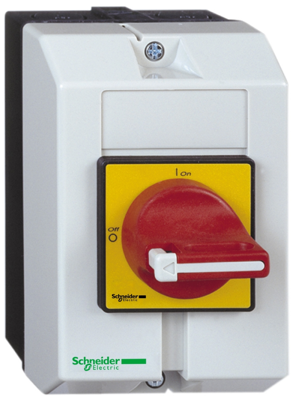

Emergency stop/main switch, VCF0GE, Schneider Electric
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 20 A 690 V, for main and emergency stop switching in motor applications AC-23 up to 7.5kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V0 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | emergency stop/main switch | |
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Assembly | panel mounting | |
| Width | 90 mm | |
| Height | 146 mm | |
| Depth | 131 mm | |
| Permanent current | 20 A | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
