VCF01GE | Schneider Electric
Emergency stop/main switch, rotary actuator, 3 pole, 16 A, (W x H x D) 90 x 146 x 131 mm, panel mounting, VCF01GE
Unit Price (€ / pc.)
34.4862 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
34.49 € *
Price list
Quantity
Price per unit*
1 pcs.
34.4862 €
5 pcs.
33.5580 €
*incl. VAT plus shipping costs
Subject to prior sale

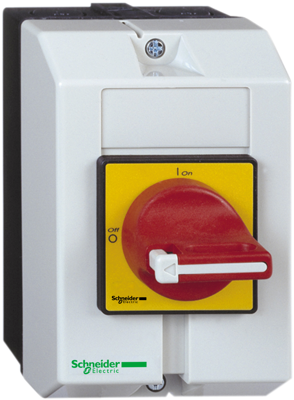

Emergency stop/main switch, VCF01GE, Schneider Electric
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16 A 690 V, for main and emergency stop switching in motor applications AC-23 up to 5.5kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V01 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Height | 146 mm | |
| Degree of protection (IP) | IP65 | |
| Assembly | panel mounting | |
| Depth | 131 mm | |
| Width | 90 mm | |
| Permanent current | 16 A | |
| Product type | emergency stop/main switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
