Emergency stop/main switch, rotary actuator, 3 pole, 20 A, (W x H) 60 x 74 mm, screw mounting, VCF01
Unit Price (€ / pc.)
27.8579 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
27.86 € *
Price list
Quantity
Price per unit*
1 pcs.
27.8579 €
5 pcs.
27.1082 €
*incl. VAT plus shipping costs
Subject to prior sale
Emergency stop/main switch, VCF01, Schneider Electric

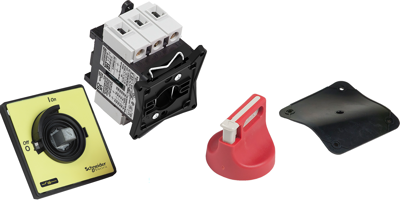

TeSys Vario switch disconnector for door mounting, 3 poles, 20 A/690 V, for motor switching applications up to 5.5kW@400V AC-23. Complete unit composed of a switch body V01, a red handle with yellow 60x60 mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Width | 60 mm | |
| Assembly | screw mounting | |
| Actuator | rotary actuator | |
| Degree of protection (IP) | IP65 | |
| Pin number | 3 pole | |
| Product type | emergency stop/main switch | |
| Permanent current | 20 A | |
| Height | 74 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85362010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
