VCDN20 | Schneider Electric
Emergency stop/main switch, rotary actuator, 3 pole, 20 A, (W x H) 60 x 60 mm, VCDN20
Unit Price (€ / pc.)
25.4660 € *
Available in 3 Days: 118 pcs. - if ordered today
Emergency stop/main switch, VCDN20, Schneider Electric

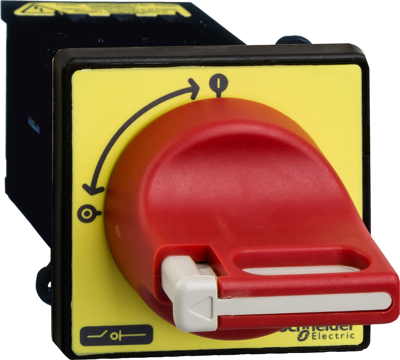

TeSys Vario switch disconnector for door mounting, 3 poles, 20 A/690 V, for motor switching applications up to 5.5kW@400V AC-23. Complete unit composed of a switch body VN20, a red handle with yellow 60x60 mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing to be mounted on door, it ensures IP65 to the mounting. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 60 mm | |
| Degree of protection (IP) | IP65 | |
| Product type | emergency stop/main switch | |
| Actuator | rotary actuator | |
| Pin number | 3 pole | |
| Permanent current | 20 A | |
| Height | 60 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
