VCD02 | Schneider Electric

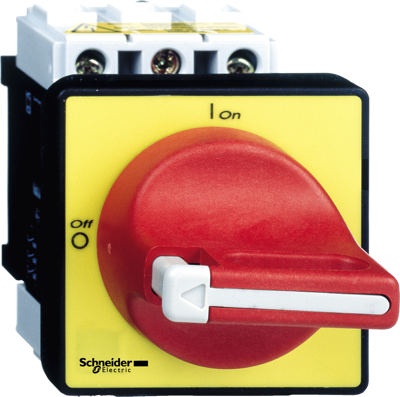

Emergency stop/main switch, rotary actuator, 3 pole, 12 A, (W x H) 60 x 74 mm, panel mounting, VCD02
Unit Price (€ / pc.)
25.0376 € *
Available: 2 pcs.
Available in 3 Days: 82 pcs. - if ordered today
Total Price:
25.04 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0376 €
5 pcs.
24.3593 €
*incl. VAT plus shipping costs
Subject to prior sale
Emergency stop/main switch, VCD02, Schneider Electric
TeSys Vario switch disconnector for door mounting, 3 poles, 12 A/690 V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body V02, a red handle with yellow 60x60 mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 60 mm | |
| Product type | emergency stop/main switch | |
| Degree of protection (IP) | IP65 | |
| Pin number | 3 pole | |
| Height | 74 mm | |
| Assembly | panel mounting | |
| Actuator | rotary actuator | |
| Permanent current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
