VCD0 | Schneider Electric
Emergency stop/main switch, rotary actuator, 3 pole, 25 A, (W x H) 60 x 74 mm, panel mounting, VCD0
Unit Price (€ / pc.)
32.1300 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
32.13 € *
Price list
Quantity
Price per unit*
1 pcs.
32.1300 €
5 pcs.
31.2613 €
*incl. VAT plus shipping costs
Subject to prior sale

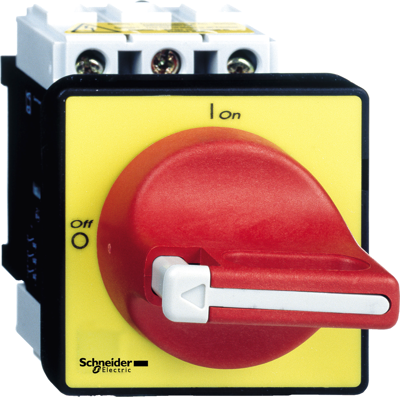

Emergency stop/main switch, VCD0, Schneider Electric
TeSys Vario switch disconnector for door mounting, 3 poles, 25 A/690 V, for motor switching applications up to 7.5kW@400V AC-23. Complete unit composed of a switch body V0, a red handle with yellow 60x60 mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Height | 74 mm | |
| Degree of protection (IP) | IP65 | |
| Assembly | panel mounting | |
| Width | 60 mm | |
| Permanent current | 25 A | |
| Product type | emergency stop/main switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
