VCCF5 | Schneider Electric

Emergency stop/main switch, rotary actuator, 3 pole, 125 A, (W x H) 90 x 125 mm, screw mounting, VCCF5

Order No.: 04P8309
EAN: 3389110804652
MPN:
VCCF5
VCCF5 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
159.2577 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
159.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
159.2577 €

Emergency stop/main switch, VCCF5, Schneider Electric

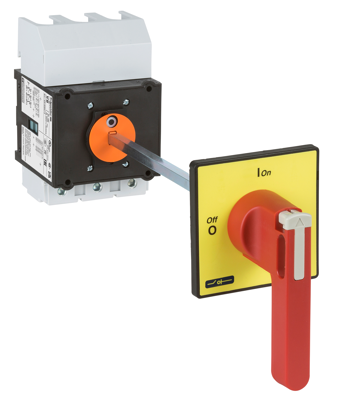

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 125 A/690 V, for motor switching applications up to 37kW@400V AC-23. Complete unit composed of a switch body V5, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 330-350 mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Pin number 3 pole
Actuator rotary actuator
Height 125 mm
Degree of protection (IP) IP65
Assembly screw mounting
Width 90 mm
Permanent current 125 A
Product type emergency stop/main switch
Logistics
Property Value
Customs tariff number 85362010
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
