VCCF4 | Schneider Electric
Emergency stop/main switch, rotary actuator, 3 pole, 80 A, (W x H) 60 x 83 mm, screw mounting, VCCF4
Unit Price (€ / pc.)
107.8259 € *
Available in 3 Days: 60 pcs. - if ordered today
Emergency stop/main switch, VCCF4, Schneider Electric

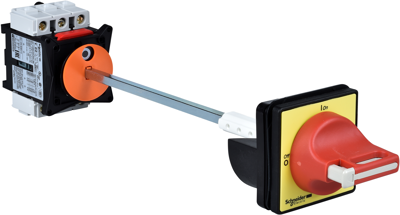

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 80 A/690 V, for motor switching applications up to 30kW@400V AC-23. Complete unit composed of a switch body V4, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 60x60 mm front plate KCF2PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-320 mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | emergency stop/main switch | |
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Assembly | screw mounting | |
| Width | 60 mm | |
| Height | 83 mm | |
| Permanent current | 80 A | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
